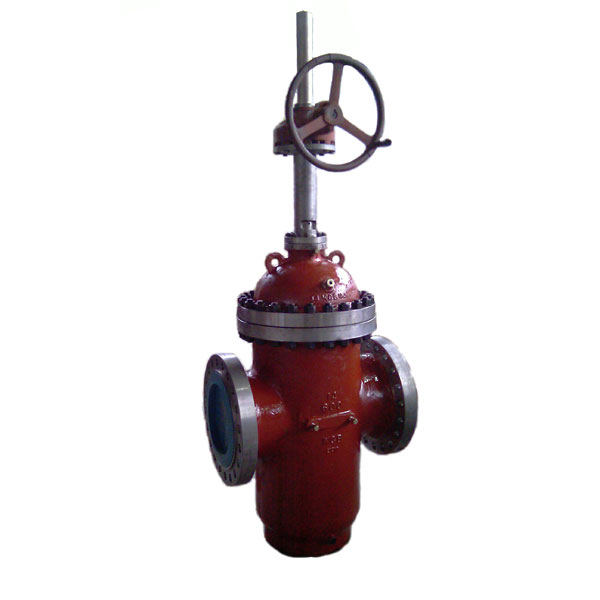

Size: 2 in to 48 in
Pressure Class: ASME 150LB to 2500LB
Operating Temperature: -50℉ to 1000℉
Materials: Carbon Steel with various internals as applicable.
Features:
1.Metal-to-Metal Mechanical Seal Design
2.Adjustable Outside Packing Gland
3.Metal-to-Metal Bonnet Seal
4.Protector Seat Faces
5.Smooth, Continuous Conduit
6.Rising Stem Design
7.Proven History in Critical Applications
8.Full bore through-conduit design eliminates turbulence; pressure drop no more than through an equal length of pipe.
9.Seat faces are protected from flow, as upstream and downstream seats are both in full contact with gate in either fully open or fully closed position. Seats and gate have Stellite #6 providing a Metal-to-Metal seal.
